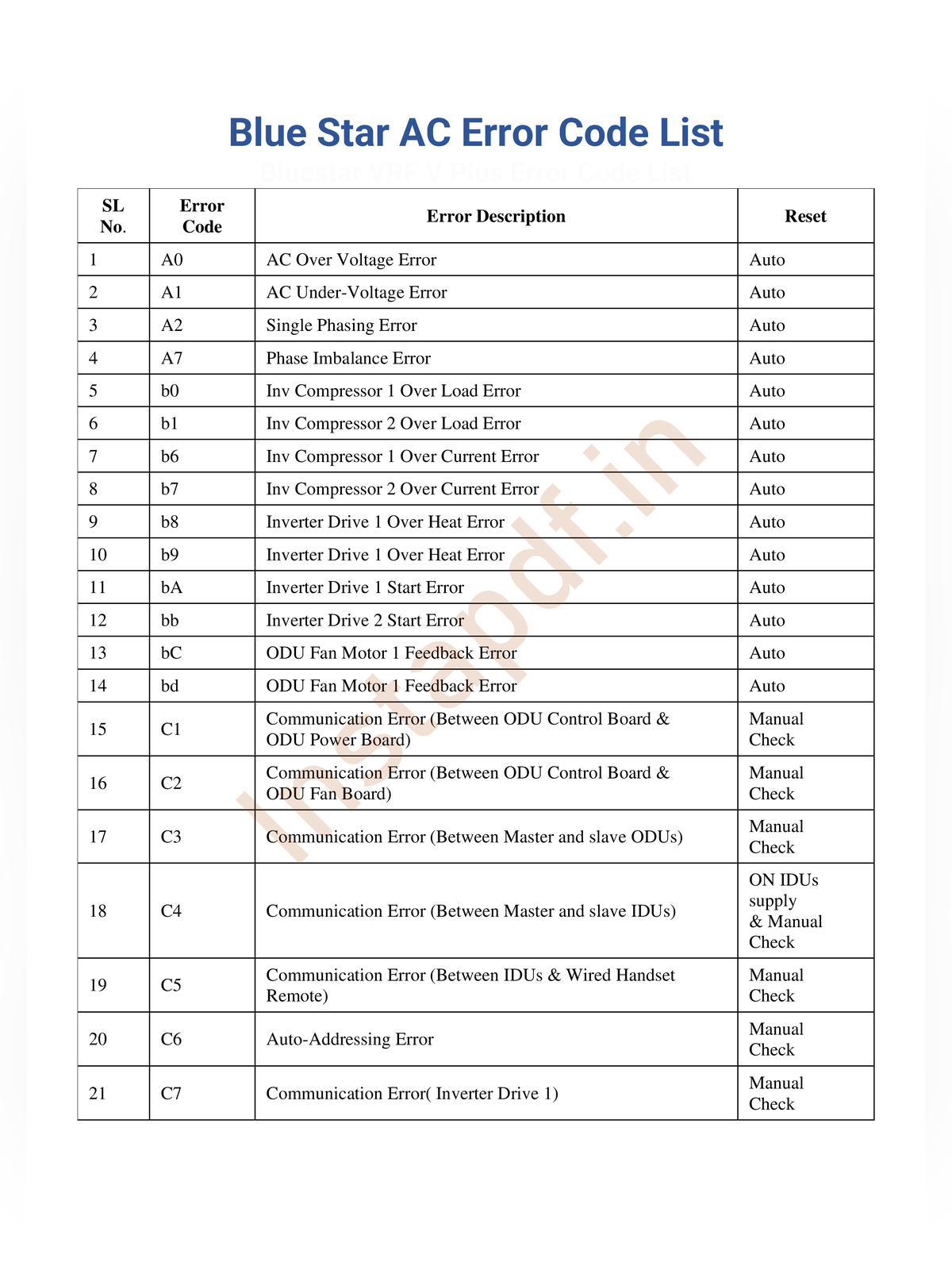

PDF PREVIEWCLICK TO SEE LARGE IMAGE

Blue Star Invertor AC Error Code List PDF

Blue Star Home appliance company is one of the most popular combines in this sector. Blue Star Ltd is an Indian multinational home appliances company that is providing its amazing products for consumers with quality servicing. The headquartered of the Blue Star company is situated in Mumbai.

Blue Star but mainly this company is very successful in air conditioning and commercial refrigeration and MEP. The company was founded in 1943. This company earned a total revenue of 5,404 crores INR of US$680 million, in 2020. It is the country’s second-largest homegrown player in the air conditioning space.

Blue Star AC Error Code List

Error Code	Error Description	Reset
A0	AC Over Voltage Error	Auto
A1	AC Under-Voltage Error	Auto
A2	Single Phasing Error	Auto
A7	Phase Imbalance Error	Auto
b0	Inv Compressor 1 Over Load Error	Auto
b1	Inv Compressor 2 Over Load Error	Auto
b6	Inv Compressor 1 Over Current Error	Auto
b7	Inv Compressor 2 Over Current Error	Auto
b8	Inverter Drive 1 Over Heat Error	Auto
b9	Inverter Drive 1 Over Heat Error	Auto
bA	Inverter Drive 1 Start Error	Auto
bb	Inverter Drive 2 Start Error	Auto
bC	ODU Fan Motor 1 Feedback Error	Auto
bd	ODU Fan Motor 1 Feedback Error	Auto
C1	Communication Error (Between ODU Control Board &	Manual
	ODU Power Board)	Check
C2	Communication Error (Between ODU Control Board &	Manual
	ODU Fan Board)	Check
C3	Communication Error (Between Master and slave ODUs)	Manual
		Check
C4	Communication Error (Between Master and slave IDUs)	ON IDUs supply
		& Manual Check
C5	Communication Error (Between IDUs & Wired Handset Remote)	Manual
		Check
C6	Auto-Addressing Error	Manual
		Check
C7	Communication Error( Inverter Drive 1)	Manual
		Check
C8	Communication Error( Inverter Drive 2)	Manual
		Check
C9	Communication Error on some other IDU	Manual
	(Displayed on IDUs without communication error)	Check
d0	Inverter Drive 1 DC Over Voltage error	Auto
d1	Inverter Drive 2 DC Oveer Voltage error	Auto
d2	Inverter Drive 1 DC Under Voltage error	Auto
d3	Inverter Drive 2 DC Under Voltage error	Auto
d8	Inverter Drive 1 Over Heat Error	Manual
d9	Inverter Drive 2 Over Heat Error	Manual
dA	Inverter Drive 1 Start error	Manual
db	Inverter Drive 2 Start error	Manual
dC	Inv Compressor 1 Over Current Error	Manual
dd	Inv Compressor 2 Over Current Error	Manual
dE	Inverter Drive Mismatch Error	Manual
E1	HP Switch Trip error	Auto
E2	HP Switch Trip for 3rd time in One Hour	Manual
E3	L P Error	Auto
E4	LP Error for 3rd time	Manual
E5	Inv Compressor 1 High DLT (Discharge Line Temperature)	Auto
E6	Inv Compressor 2 High DLT (Discharge Line Temperature)	Auto
E8	Inv Compressor 1 High DLT (Discharge Line Temperature) for 4th time	Manual
E9	Inv Compressor 2 High DLT (Discharge Line Temperature) for 4th time	Manual
Eb	ODU Fan Motor 1 feedback Error	Manual
EE	ODU Fan Motor 2 feedback Error	Manual
EC	Inv Compressor 1 Over Load Error	Manual
Ed	Inv Compressor 2 Over Load Error	Manual
F1	Ambient Temp. Sensor Failure	Manual Check
F2	DLT (Discharge Line Temperature) Inv. Compressor 1 Sensor Failure	Manual Check
F3	DLT (Discharge Line Temperature) Inv. Compressor 2 Sensor Failure	Manual Check
F5	ODU Liq. Temp. (Hex1) Sensor Failure	Manual Check
F6	ODU Gas Temp. (Hex1) Sensor Failure	Manual Check
F7	ODU Liq. Temp. (Hex1) Sensor Failure	Manual Check
F8	ODU Gas Temp. (Hex1) Sensor Failure	Manual Check
F9	HP Sensor Failure	Manual Check
FA	LP Sensor Failure	Manual Check
Fb	Fire Alarm from ODU	Manual Check
Fc	Fire Alarm from IDU	Manual Check
U3	IDU Room Temp Sensor Failure (Displayed on IDU)	Manual Check
U4	IDU Liquid Temp Sensor Failure (Displayed on IDU)	Manual Check
U5	IDU Gas Temp Sensor Failure (Display on IDU)	Manual Check
U6	IDU Supply Temp Sensor Failure (Display on IDU)	Manual Check
U7	IDU Float Switch Error (Display on IDU)	Manual Check
U8	IDU Fan Motor Error (Display on IDU)	Manual Check
U9	Mode conflict Error (Display on IDU)	Manual Check

Blue Star Inverter AC Error Codes List

Sr.No.	AC Error Code	Code Description
1	E1	High-Pressure Protection of System
2	E2	Antifreezing Protection
3	E3	Low-Pressure Protection of System
4	E4	High Discharge Temperature Protection of Compressor
5	E5	Overcurrent Protection
6	E6	Communication Malfunction
7	E8	High-Temperature Resistant Protection
8	EE	EEPROM Malfunction
9	EU	Limit Frequency due to High Temperature of Module
10	C5	Malfunction Protection of Jumper Cap
11	F0	Gathering Refrigerant
12	F1	Indoor Temperature Sensor is Short Circuited
13	F2	IndoorEvaporator Temperature Sensor is short Circuited
14	F3	Outdoor Ambient Temperature Sensor is Short Circuited
15	F4	Outdoor Condensor Temperature is Short Circuited
16	F5	Outdoor Discharge Temperature Sensor is Short Circuited
17	F6	Limit Frequency due to Over Load
18	F8	Limit Frequency due to Overcurrent
19	F9	Limit / Decrease Frequency due to High Air Discharge
20	FH	Limit Frequency due to Antifreezing
21	PH	DC Bus Bar Voltage is High
22	PL	DC Bus Bar Voltage is Low
23	P5	Overcurrent Protection of Phase Current for Compressor
24	PU	Capacitor Charging Malfunction
25	P7	Module Temperature Sensor Circuit Malfunction
26	H3	Overload Protection for Compressor
27	H5	IPM protection
28	P8	Module Temperature is too High
29	H6	Fan Motor Not Operating
30	H7	Compressor Desynchronizing
31	HC	PFC Protection
32	L3	Outdoor DC Fan Motor Not Working
33	L9	Power Protection
34	LP	Indoor and Outdoor Unit does not Match
35	LC	Failure startup
36	U1	Malfunction of Phase Current detection for Compressor
37	U3	Malfunction of Voltage Dropping for DC Bus bar
38	U5	Gas Leakage
39	U7	Four-way valve is not normal
40	U8	Zero cross Detection Circuit malfunction
